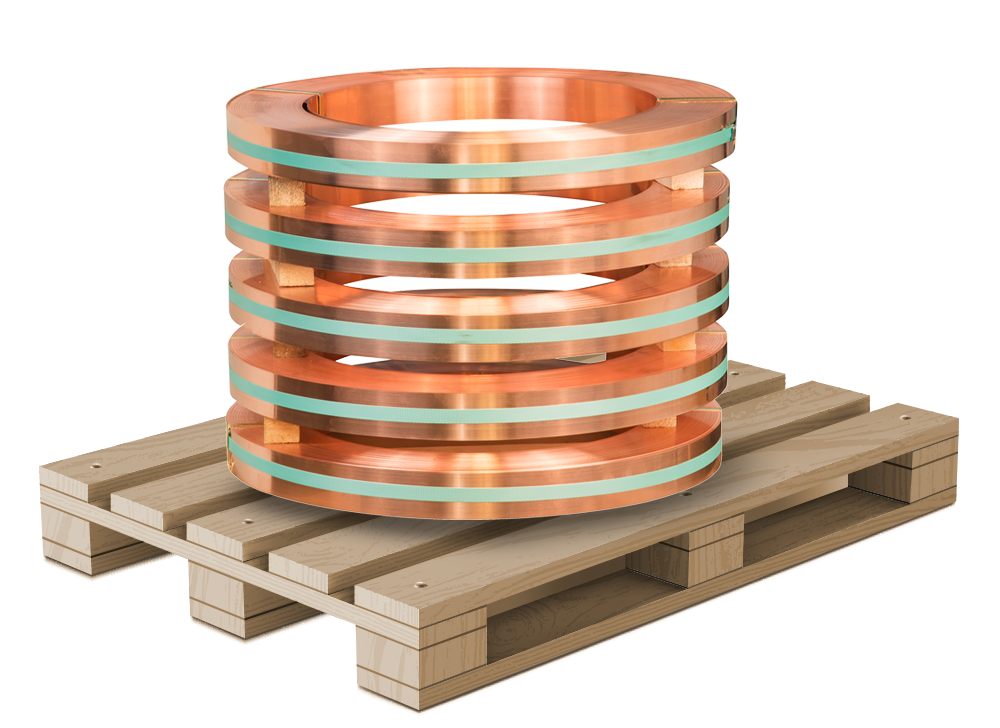

Copper Strip
Copper Strip, which are brought to their hardness and thickness values by rolling and annealing processes.Washing, Annealing and Slicing processes are applied.
We can customize any size and hardness as requested.
Chemical Composition
Alloy | EN NO | Cu% | Sn% | P% | Ag% | O% |
---|---|---|---|---|---|---|
Cu-ETP, E - Cu58 | CW004A | 99,90 | --- | --- | 0,0025 | 0,040 |
Cu-DHP, SF - Cu | CW024A | 99,90 | --- |
0,015 0,040 |
0,0025 | --- |
CuSn0,15 | CW117C | 99,90 | 0,15 | 0,006 | --- | --- |
Cu-PHC, SE-Cu | CW020A | 99,99 | --- |
0,001 0,006 |
--- | --- |
Physical Properties
Alloy | EN NO |
Density g/cm³ |
Electrical Conductivity MS/m |
Electrical Conductivity %1 ACS |
Thermal Conductivity W/mK |
Modulus of Elasticity kN/m² |
---|---|---|---|---|---|---|
Cu-ETP, E - Cu58 | CW004A | 8,94 | 58 | 100 | 390 | 127 |
Cu-DHP, Sf - Cu | CW024A | 8,94 | 46 | 79 | 340 | 132 |
CuSn0,15 | CW117C | 8,90 | 51 | 88 | 350 | 130 |
Cu-PHC, SE-Cu | CW021A | 8,94 | 58 | 100 | 390 | 127 |
Coil Specifications
Thickness | Width | Inside Diameter | Outside Diameter | Weight |
---|---|---|---|---|
0.04 - 0.50 mm | 4 - 450 mm | 100 - 400 mm | 500 - 1200 mm | 2.800 Kg Max. |
0.50 - 5.00 mm | 4 - 450 mm | 100 - 400 mm | 500 - 1200 mm | 4.500 Kg Max. |

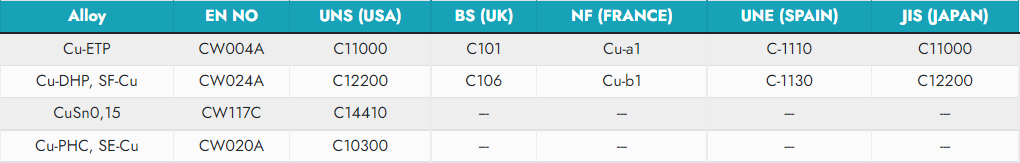

Norm Correspondence Table
Alloy | EN NO | UNS (USA) | BS (UK) | NF (FRANCE) | UNE (SPAIN) | JIS (JAPAN) |
---|---|---|---|---|---|---|
Cu-ETP | CW004A | C11000 | C101 | Cu-a1 | C-1110 | C11000 |
Cu-DHP, SF-Cu | CW024A | C12200 | C106 | Cu-b1 | C-1130 | C12200 |
CuSn0,15 | CW117C | C14410 | --- | --- | --- | --- |
Cu-PHC, SE-Cu | CW020A | C10300 | --- | --- | --- | --- |
Mechanical Properties
Alloy | Hardness |
Tensile Strength N/mm² Minimum |
Tensile Strength N/mm² Maximum |
Yield Strength N/mm² |
Elongation % Minimum |
Hardness HV Minimum |
Hardness HV Maximum |
|
---|---|---|---|---|---|---|---|---|
Cu-ETP E-Cu58 |
H040 | 220 | 260 | Maximum 140 | 33 | 40 | 65 | |
H065 | 240 | 300 | Minimum 180 | 8 | 65 | 95 | ||
H090 | 290 | 360 | Minimum 250 | 4 | 90 | 110 | ||
H110 | 360 | --- | Minimum 320 | 2 | 110 | --- | ||
Cu-DHP SF-Cu |
H040 | 220 | 260 | Maximum 140 | 33 | 40 | 65 | |
H065 | 240 | 300 | Minimum 180 | 8 | 65 | 95 | ||
H090 | 290 | 360 | Minimum 250 | 4 | 90 | 110 | ||
H110 | 360 | --- | Minimum 320 | 2 | 110 | --- | ||
CuSn0,15 | H060 | 250 | 320 | Maximum 200 | 9 | 60 | 90 | |
H085 | 300 | 370 | Minimum 250 | 4 | 85 | 110 | ||
H105 | 360 | 430 | Minimum 300 | 3 | 105 | 130 | ||
H120 | 430 | 490 | Minimum 350 | 2 | 120 | 140 | ||
Cu-PHC SE-Cu |
H040 | 220 | 260 | Maximum 140 | 9 | 45 | 65 | 90 |
H065 | 240 | 300 | Minimum 180 | 4 | 65 | 95 | 110 | |
H090 | 290 | 360 | Minimum 250 | 3 | 90 | 110 | 130 | |
H110 | 360 | --- | Minimum 320 | 2 | 110 | --- | 140 |
