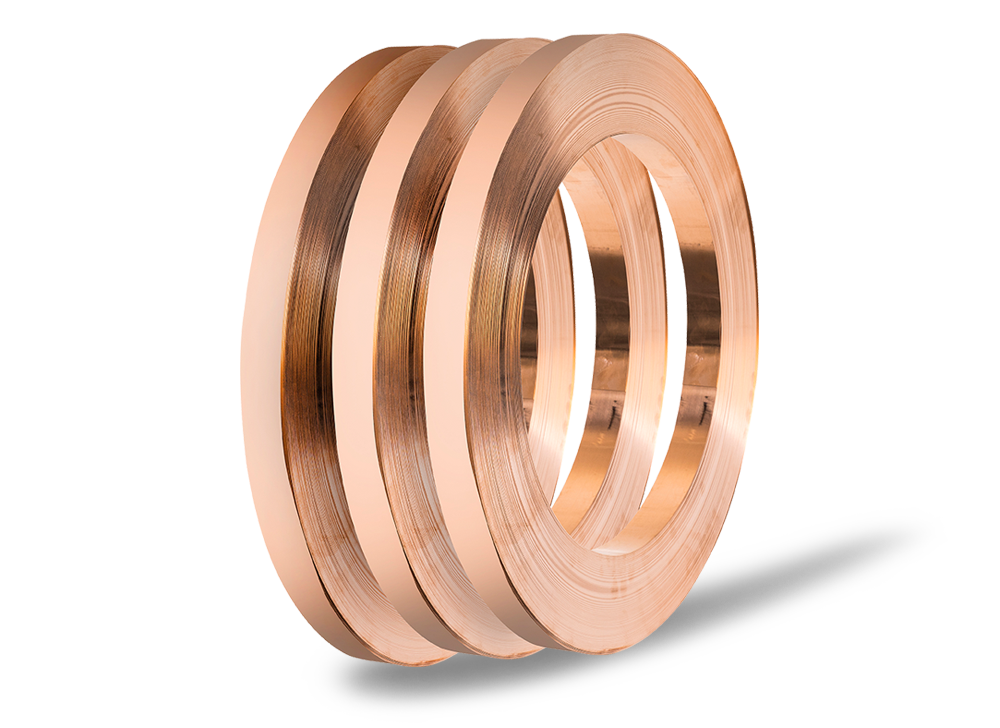

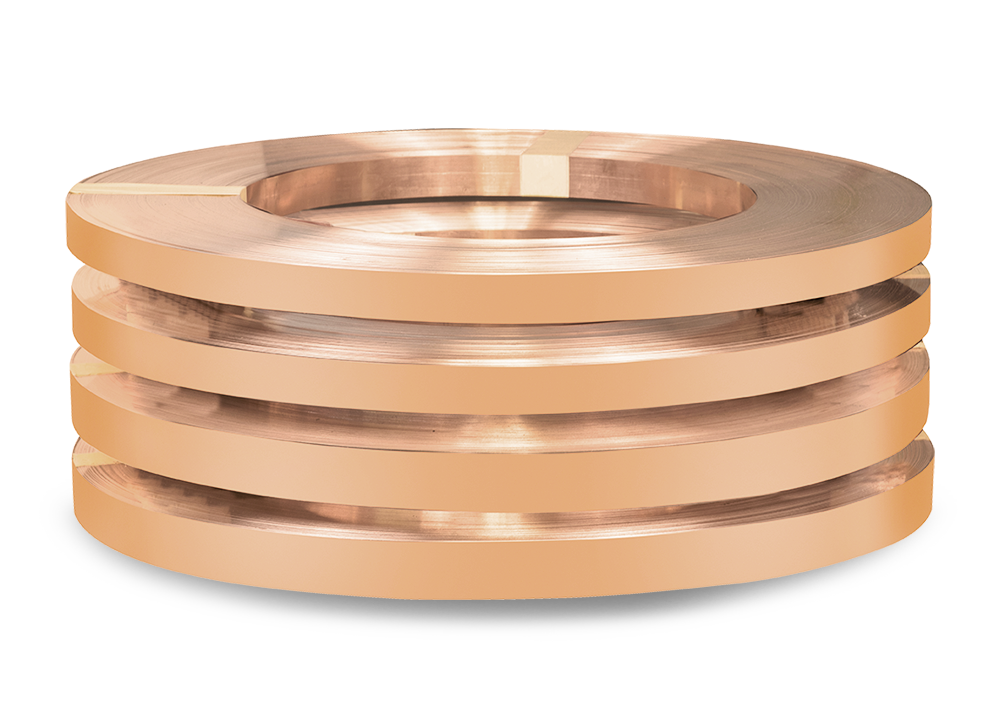

Phosphor Bronze Strip
Phosphor Bronze Strip is brought to hardness and thickness values by rolling and annealing processes, washing, annealing and slicing processes are applied.
Altıntel Metal produces phosphor bronze strips in widths of 7 – 470 mm and thicknesses of 0.045 – 3.60 mm using modern continuous casting and cold rolling technologies.

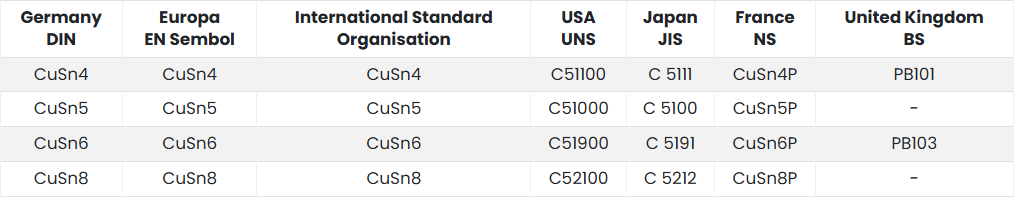

Alloys We Produce
Germany DIN |
Europa EN Sembol |
International Standard Organisation |
USA UNS |
Japan JIS |
France NS |
United Kingdom BS |
---|---|---|---|---|---|---|
CuSn4 | CuSn4 | CuSn4 | C51100 | C 5111 | CuSn4P | PB101 |
CuSn5 | CuSn5 | CuSn5 | C51000 | C 5100 | CuSn5P | - |
CuSn6 | CuSn6 | CuSn6 | C51900 | C 5191 | CuSn6P | PB103 |
CuSn8 | CuSn8 | CuSn8 | C52100 | C 5212 | CuSn8P | - |

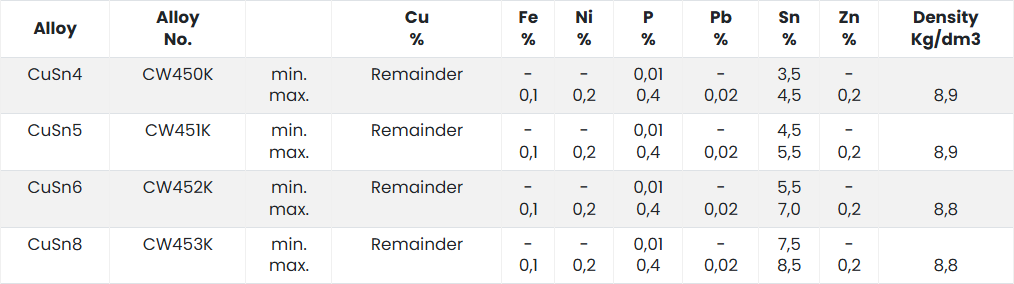

Alloy | Alloy No. |
Cu % |
Fe % |
Ni % |
P % |
Pb % |
Sn % |
Zn % |
Density Kg/dm3 |
|
---|---|---|---|---|---|---|---|---|---|---|
CuSn4 | CW450K | min. max. |
Remainder | - 0,1 |
- 0,2 |
0,01 0,4 |
- 0,02 |
3,5 4,5 |
- 0,2 |
8,9 |
CuSn5 | CW451K | min. max. |
Remainder | - 0,1 |
- 0,2 |
0,01 0,4 |
- 0,02 |
4,5 5,5 |
- 0,2 |
8,9 |
CuSn6 | CW452K | min. max. |
Remainder | - 0,1 |
- 0,2 |
0,01 0,4 |
- 0,02 |
5,5 7,0 |
- 0,2 |
8,8 |
CuSn8 | CW453K | min. max. |
Remainder | - 0,1 |
- 0,2 |
0,01 0,4 |
- 0,02 |
7,5 8,5 |
- 0,2 |
8,8 |

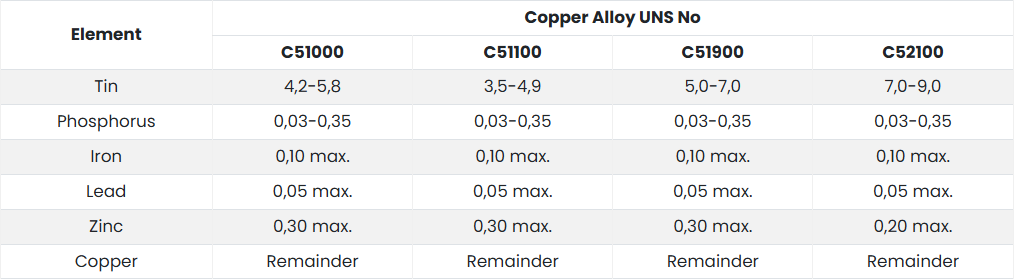

Chemical Composition
Element | Copper Alloy UNS No | |||
---|---|---|---|---|
C51000 | C51100 | C51900 | C52100 | |
Tin | 4,2-5,8 | 3,5-4,9 | 5,0-7,0 | 7,0-9,0 |
Phosphorus | 0,03-0,35 | 0,03-0,35 | 0,03-0,35 | 0,03-0,35 |
Iron | 0,10 max. | 0,10 max. | 0,10 max. | 0,10 max. |
Lead | 0,05 max. | 0,05 max. | 0,05 max. | 0,05 max. |
Zinc | 0,30 max. | 0,30 max. | 0,30 max. | 0,20 max. |
Copper | Remainder | Remainder | Remainder | Remainder |

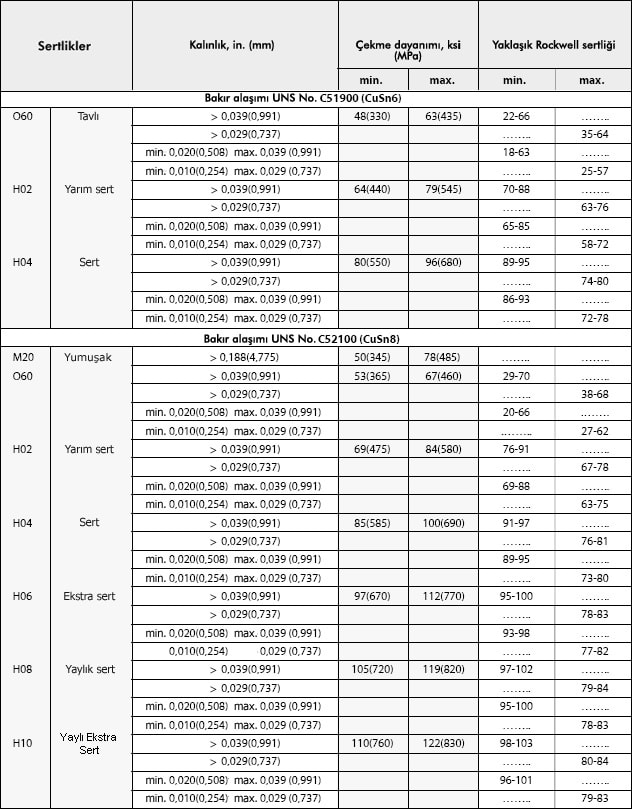

Mechanical Properties






Packaging Options
