Round Wires
Round Wires are brought to hardness and thickness values by rolling and annealing processes, washing and annealing processes are applied.
Round Wires, produced in desired diameters from 0.20 mm to 20 mm, can be produced wrapped on coils or reels weighing up to 3,000 kg.
Alloys We Produce
Germany DIN |
Europa EN Sembol |
International Standard Organisation ISO Symbol |
USA UNS |
Japan JIS |
France NS |
United Kingdom BS |
---|---|---|---|---|---|---|
CuZn15 | CuZn15 | CuZn15 | C23000 | C 2300 | CuZn15 | CZ102 |
CuZn20 | CuZn20 | CuZn20 | C24000 | C 2400 | CuZn20 | CZ103 |
CuZn30 | CuZn30 | CuZn30 | C26000 | C 2600 | CuZn30 | CZ106 |
CuZn33 | CuZn33 | CuZn35 | C26800 | C 2680 | CuZn33 | CZ107 |
CuZn37 | CuZn37 | CuZn37 | C27400 | C 2720 | CuZn37 | CZ108 |
CuNi12Zn24 | CuNi12Zn24 | CuNi12Zn24 | C75700 | C 7521 | CuNi12Zn24 | NS104 |
Alloy | Alloy No. | Cu (%) | Zn (%) | Al (%) | Fe (%) | Ni (%) | Pb (%) | Sn (%) | Mn (%) | Density (Kg/dm³) |
|
---|---|---|---|---|---|---|---|---|---|---|---|
CuZn15 | CW502L | min. max. |
84,0 86,0 |
Kalan | - 0,02 |
- 0,05 |
- 0,3 |
- 0,05 |
- 0,1 |
- | 8,8 |
CuZn20 | CW503L | min. max. |
79,0 81,0 |
Kalan | - 0,02 |
- 0,05 |
- 0,3 |
- 0,05 |
- 0,1 |
- | 8,7 |
CuZn30 | CW505L | min. max. |
69,0 71,0 |
Kalan | - 0,02 |
- 0,05 |
- 0,3 |
- 0,05 |
- 0,1 |
- | 8,5 |
CuZn37 | CW508L | min. max. |
62,0 64,0 |
Kalan | - 0,05 |
- 0,1 |
- 0,3 |
- 0,1 |
- 0,1 |
- | 8,4 |
CuNi12Zn24 | CW403J | min. max. |
63,0 66,0 |
Kalan | -- | - 0,3 |
11,0 13,0 |
- 0,03 |
- 0,03 |
- 0,5 |
8,7 |
Chemical Composition
Copper Alloy UNS No. |
Composition, % | ||||
---|---|---|---|---|---|
Copper | Lead (max.) | Iron (max.) | Zinc | ||
C23000 | 84,0 - 86,0 | 0,05 | 0,05 | Remainder | |
C24000 | 78,5 - 81,5 | 0,05 | 0,05 | Remainder | |
C26000 | 68,5 - 71,5 | 0,07 | 0,05 | Remainder | |
C27400 | 61,0 - 64,0 | 0,1 | 0,05 | Remainder |
Copper Alloy UNS No. |
Composition, % | |||||
---|---|---|---|---|---|---|
Copper | Nickel | Lead max. | Iron max. | Manganese max. | Zinc | |
C75700 | 63,5-66,5 | 11,0-13,0 | 0,05 | 0,25 | 0,50 | Remainder |

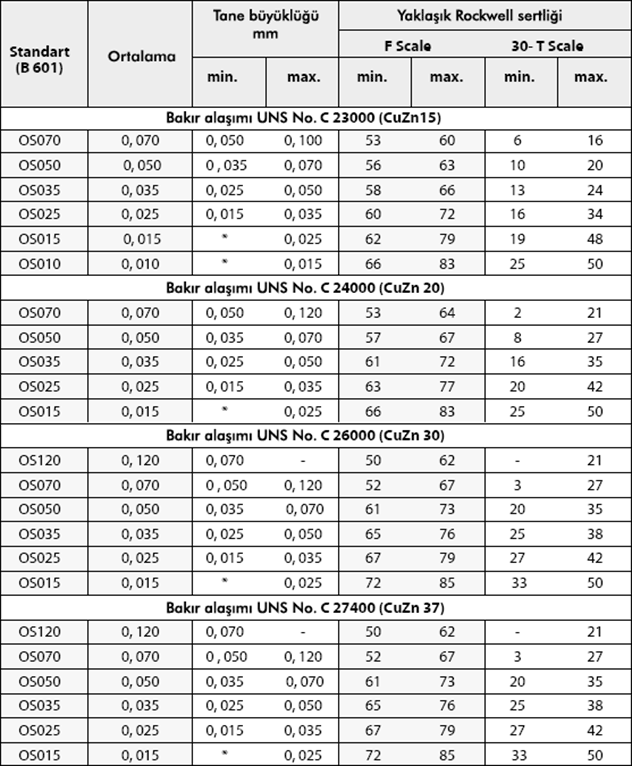

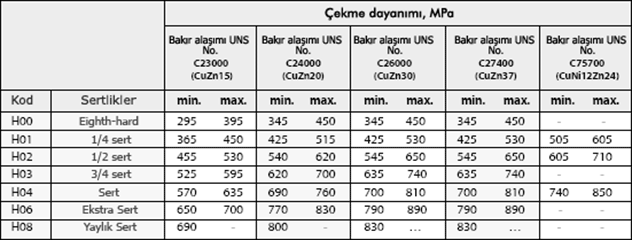

Mechanical Properties







Production Range and Packaging Options
