Strip Tin Plating
Washing, annealing and slicing processes are applied to the strips that are brought to hardness and thickness values by rolling and annealing processes.
Using modern continuous casting and cold rolling technologies, Altıntel Metal applies tin coating to strips with widths of 7 – 470 mm and thicknesses of 0.045 – 3.60 mm.
Available Alloys
| Copper | Brass | Bronze |
|---|---|---|
| Cu-ETP | CuZn10 | CuSn4 |
| CuSn 0,1 | CuZn15 | CuSn5 |
| Cu-PHC | CuZn30 | CuSn6 |
| CuZn33 | CuSn8 | |
| CuZn36 |
Tin Layers Thicknesses
| Coating Thickness | Application |
|---|---|
| 1.0 - 3.0 µm | Reduced insertion and drawing forces |
| 2.0 - 5.0 µm | Good resistance against corrosion |
|
4.0 - 8.0 µm 5.0 - 10.0 µm |
Good solderability |
Delivery Formats
Strip In Coils
| Size Ranges | |
|---|---|
| Strip Width | 7 - 440 mm |
| Strip Thickness | 0,15 - 1,30 mm |
| Coil Inside Diameter | 100 / 400 / 500 mm |
| Coil Outside Diameter | Minimum 400 mm - Maximum 1450 mm |
Traverse Wounded Strips
| Size Ranges | |
|---|---|
| Strip Width | 15,00 - 50,00 mm |
| Strip Thickness | 0,25 - 1,30 mm |
| Rel/Drum Weight | Minimum 250 kg - Maximum 2000 kg |
Dimensions Of Reels
| Dimensions Of Reels (mm) | |
|---|---|
| A | Minimum 100 - Maximum 400 |
| B | Minimum 136 - Maximum 436 |
| C | 18 |
| D | Minimum 700 - Maximum 1050 |
| E | 90 / 127 / 300 / 400 |
| F | 350 or 450 |

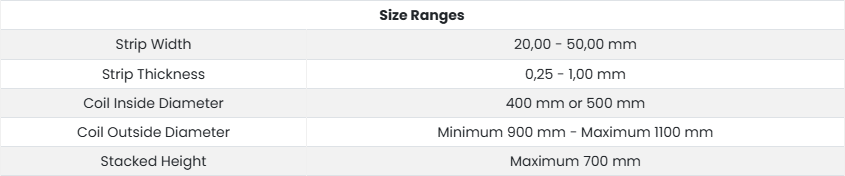

Multi Coils
| Size Ranges | |
|---|---|
| Strip Width | 20,00 - 50,00 mm |
| Strip Thickness | 0,25 - 1,00 mm |
| Coil Inside Diameter | 400 mm or 500 mm |
| Coil Outside Diameter | Minimum 900 mm - Maximum 1100 mm |
| Stacked Height | Maximum 700 mm |
